| <strong>product or component type</strong> |

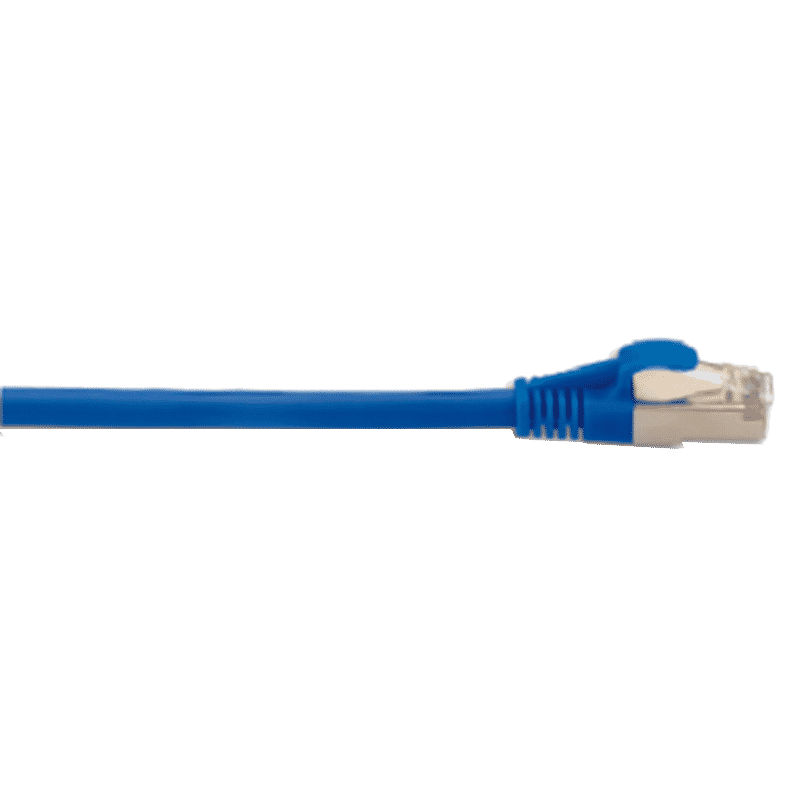

Patch cord |
|---|---|
| نوع | |
| دسته بندی | |
| <strong>standards</strong> |
IEC 60603-7 |
| <strong>number of matings</strong> |
1000cycles |
| <strong>range of product</strong> |
Actassi |
| <strong>contact resistance</strong> |
10mOhm |
| <strong>power sum far end crosstalk [PSFEXT] </strong> |
46.9dB |
| <strong>Product end of life instructions</strong> |
Need no specific recycling operations |
| <strong>Product environmental profile</strong> |
<a href="http://download.schneider-electric.com/files?p_Doc_Oid=2615027" rel="noopener" target="_blank">AvailableProduct environmental</a> |
| <strong>REACh</strong> |
<a href="http://www.reach.schneider-electric.com/DistantRequestDispatcher.aspx?action=check&pid=66027184&lang=en-us" rel="noopener" target="_blank">Reference not containing SVHC above the threshold</a> |
| <strong>RoHS (date code: YYWW) </strong> |
<a href="http://www.reach.schneider-electric.com/DistantRequestDispatcher.aspx?action=export&pid=66027184&lang=en-us" rel="noopener" target="_blank">Compliant – since 0852 – Schneider Electric declaration of conformity Schneider Electric declaration of conformity</a> |
| <strong>Sustainable offer status</strong> |
Green Premium product |
| <strong>flame retardance</strong> |
CM |
| <strong>contacts material</strong> |
Phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel |
| <strong>far end crosstalk [FEXT]</strong> |
49.8dB |
| متراژ | , , , |
| <strong>power sum near-end crosstalk [PS NEXT]</strong> |
52dB |
| <strong>near end crosstalk [NEXT]</strong> |
55.1dB |
| <strong>attenuation</strong> |
0.1dB |
| <strong>return loss</strong> |
27dB |
| <strong>communication network category </strong> |
6 |
| <strong>cable shielding type</strong> |
UTP |
| <strong>cable length</strong> |
1 -5m |
| <strong>type of cable</strong> |
4pair cables |
| <strong>insulation resistance</strong> |
500MOhm |
| <strong>[In] rated current</strong> |
1.5A |
| <strong>rated voltage</strong> |
150V AC |
| <strong>colour tint</strong> |
Blue |
| برند |
