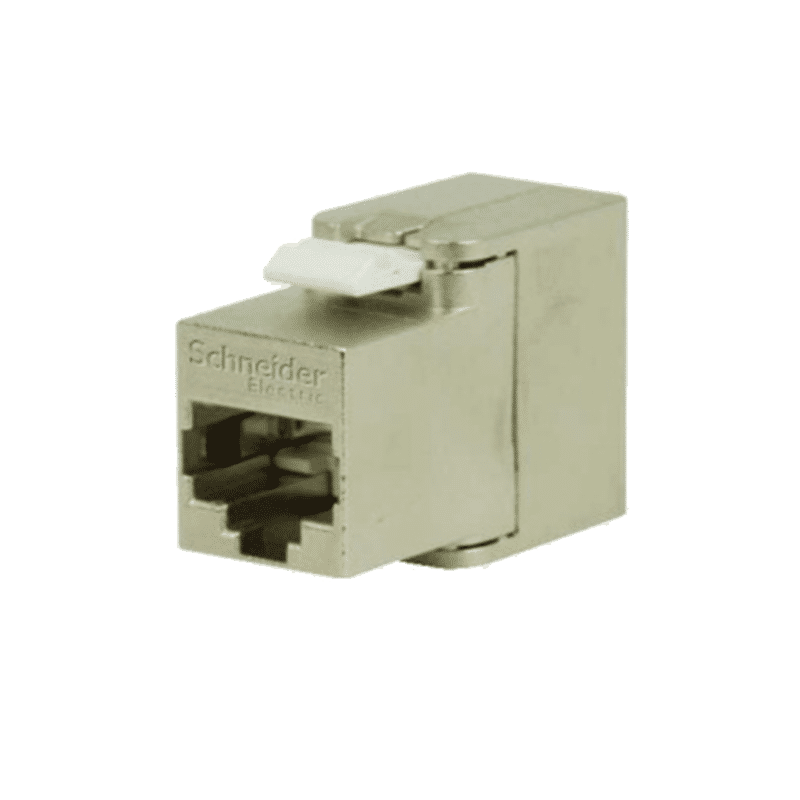

کیستون اکتاسی Cat 6FTP اشنایدر نسخه panel

کیستون Cat 6FTP نسخه panel مدل ACTRJSM6NSSP اکتاسی اشنایدر

دارای بدنه فلزی و محل پانج سیم ارت
دارای استاندار های IEC 11801 class E و NZS 3080:2003 class E و TIA/EIA 568 B

0 نفر در حال مشاهده محصول هستند

توضیحات

توضیحات محصول

کیستون شیلدار Cat 6FTP مدل ACTRJSM6NSSP اشنایدر اکتاسی نسخه panel

کیستون شیلدار Cat 6FTP مدل ACTRJSM6NSSP اشنایدر اکتاسی نسخه ی panel دارای استاندارد IEC 11801 class E و NZS 3080:2003 class E و TIA/EIA 568 B بوده و در رنگبندی متنوع قابل عرضه میباشد.

مشخصات

<strong>product or component type </strong>	Keystone modular jack
نوع	Cat6
دسته بندی	پریز و کیستون
<strong>RoHS (date code: YYWW) </strong>	<a href="http://www.reach.schneider-electric.com/DistantRequestDispatcher.aspx?action=export&pid=66027882&lang=en-us" rel="noopener" target="_blank">Compliant – since 1101 – Schneider Electric declaration of conformity Schneider Electric declaration of conformity</a>
<strong>insertion loss </strong>	0.1dB at 1 MHz 0.1dB at 4 MHz 0.1dB at 10 MHz 0.1dB at 16 MHz 0.1dB at 20 MHz 0.11dB at 31.25 MHz 0.16dB at 62.5 MHz 0.2dB at 100 MHz 0.28dB at 200 MHz 0.32dB at 250 MHz
<strong>REACh </strong>	<a href="https://www.reach.schneider-electric.com/CheckProduct.aspx?lang=en-us&cskey=thniy8awya93pl2abuto" rel="noopener" target="_blank">Reference not containing SVHC above the threshold</a>
power sum far end crosstalk [PSFEXT]	72dB at 1 MHz 68.1dB at 4 MHz 60.1dB at 10 MHz 56dB at 16 MHz 54.1dB at 20 MHz 50.2dB at 31.25 MHz 44.2dB at 62.5 MHz 40.1dB at 100 MHz 34.1dB at 200 MHz 32.1dB at 250 MHz
محصول	کیستون
<strong>Warranty period </strong>	18months
<strong>Product end of life instructions </strong>	Need no specific recycling operations
<strong>standards</strong>	IEC 11801 class E NZS 3080:2003 class E TIA/EIA 568 B
<strong>product certifications </strong>	FCC part 68 F IEC 60603-7
<strong>range </strong>	Actassi
<strong>power sum near-end crosstalk [PS NEXT] </strong>	71dB at 1 MHz 71dB at 4 MHz 70dB at 10 MHz 65.9dB at 16 MHz 64dB at 20 MHz 60.1dB at 31.25 MHz 54.1dB at 62.5 MHz 50dB at 100 MHz 44dB at 200 MHz 42dB at 250 MHz
<strong>near end crosstalk [NEXT] </strong>	75dB at 1 MHz 75dB at 4 MHz 74dB at 10 MHz 69.9dB at 16 MHz 68dB at 20 MHz 64.1dB at 31.25 MHz 58.1dB at 62.5 MHz 54dB at 100 MHz 48dB at 200 MHz 46dB at 250 MHz
<strong>return loss </strong>	18dB, at 200 MHz 30dB, at 1 MHz 30dB, at 4 MHz 30dB, at 10 MHz 30dB, at 16 MHz 30dB, at 20 MHz 30dB, at 31.25 MHz 28.1dB, at 62.5 MHz 24dB, at 100 MHz 16dB, at 250 MHz
<strong>connector type </strong>	RJ45 (Cat6)
<strong>cable shielding type </strong>	FTP
<strong>product specific application </strong>	For panel
<strong>colour tint </strong>	Metal
<strong>provided equipment </strong>	Without shutter
برند	Schneider
