مشخصات سخت افزاری
|
1/3”1Megapixel progressive CMOS sensor
Minimum illumination: 0.2 lux
Focal length: 2.8 mm
Aperture: F2.0
Minimum object distance 20 inches
:(Angle of view (16:9
H) 84°)
V) 44°)
D) 100°)
|
|
مشخصات تصویر
|
Configurable image size, quality, frame rate and bit rate
Time stamp and text overlays
Configurable motion detection windows
Configurable privacy mask zones
Configurable exposure time, brightness, saturation, contrast and sharpness
(Wide Dynamic Range (WDR
3D filtering
|
|
فرمت ویدیو
|
Simultaneous H.264/MPEG-4/MJPEG multi-format compression
JPEG for still images
H.264/MPEG-4 multicast streaming
|
|
رزولوشن ویدیو
|
16:9
1280x 720, 800 x 450, 640 x 360 up to 30 fps
4:3
1024x 768, 800 x 600, 640 x 480 up to 30 fps
|
|
فرمت صدا
|
G.711
|
|

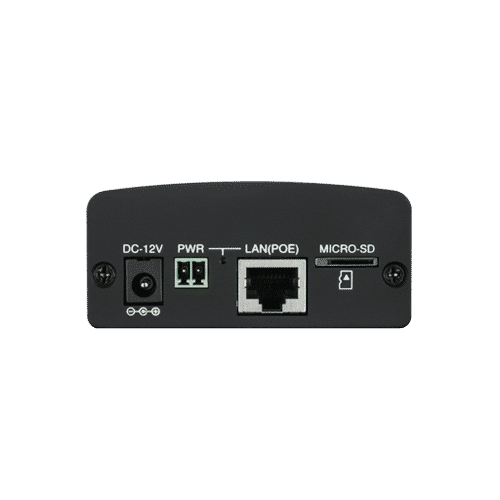

رابط کاربری
|
(10/100BASE-TX Ethernet port with PoE (Class 2
1DI / 1 DO
DC 12 V, 100 mA output
Camera port
Audio input/output
(Power terminal (8 ~ 28 V DC)
Reset button
microSD/SDHC/SDXC card slot
|
|
پروتکل های شبکه
|
IPv6, IPv4, TCP/IP, UDP, ICMP
DHCP client
(NTP client (D-Link
DNS client
(DDNS client (D-Link
SMTP client
FTP client
HTTP / HTTPS
Samba client
PPPoE
UPnP port forwarding
RTP / RTSP / RTCP
IP filtering
QoS / CoS
Multicast
ONVIF compliant
Bonjour
SNMP
|
|
امنیت
|
Administrator and user group protection
Password authentication
HTTP and RTSP authentication
|
|
درگاه micro SD
|
Supports microSD/SDHC/SDXC
Up to 128 GB
|
|
mydlink Camera Recorder
|
Supports 2 external USB hard drives up to 4 TB each
Records up to 4 D-Link Wi-Fi Cameras
DNR-202L and USB hard drives sold separately
|
|
Event Management
|
Motion detection
Event notification and uploading of snapshots/video clips via e-mail or FTP
Supports multiple SMTP and FTP servers
Multiple event notifications
Multiple recording methods for easy backup
|
|
مدیریت از راه دور
|
Take snapshots/video clips and save to local hard drive
Configuration interface accessible via web browser
|
|
منبع تغذیه
|
Input: 100 to 240 V AC, 50/60 Hz
Output: 12 V DC, 1.5 A
|
|
نوع
|
Bullet
|
|
محل نصب
|
Outdoor
|
|
برند
|
D-link
|
